Name: Pewter Shepherds Crook Door Bolt
Brand: Anvil / Marches
SKU: 33075
Price: 53.95 GBP
Availability: InStock

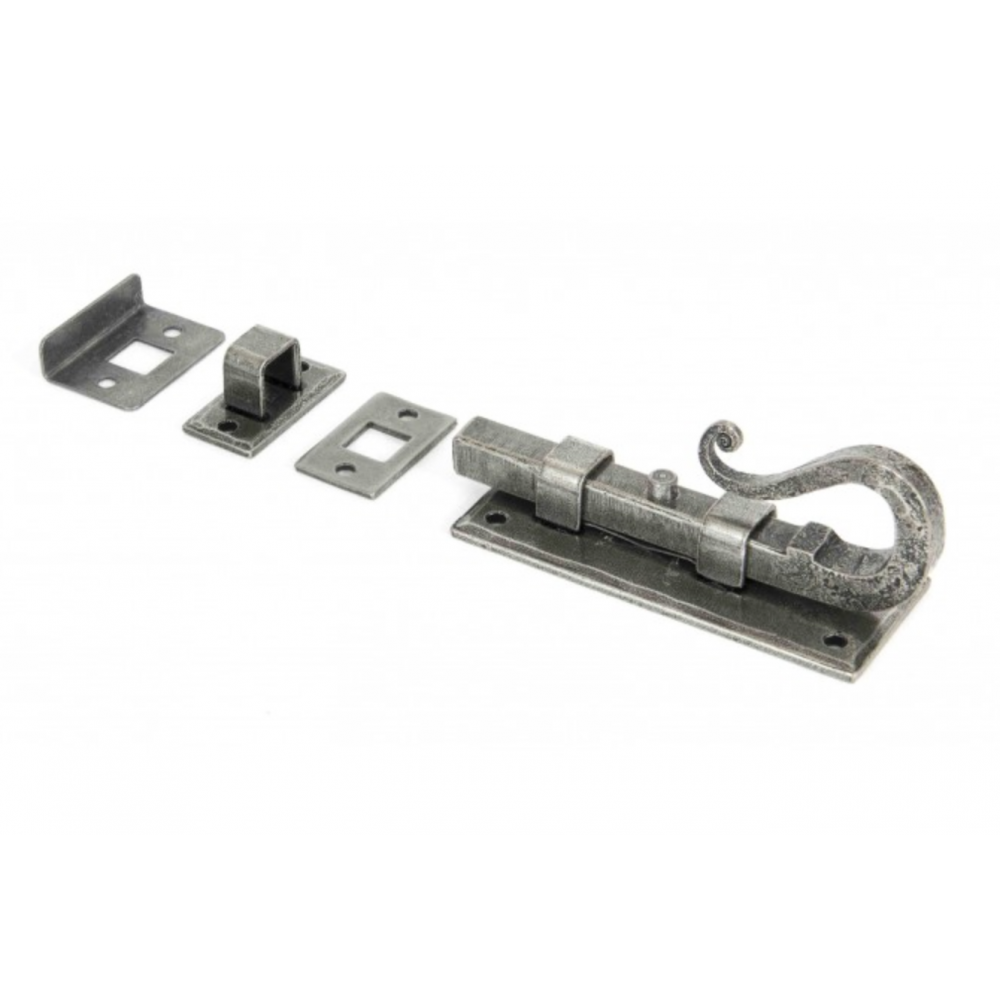

A shepherds crook bolt with receiver plate, receiver bridge and angled keep in a pewter finish

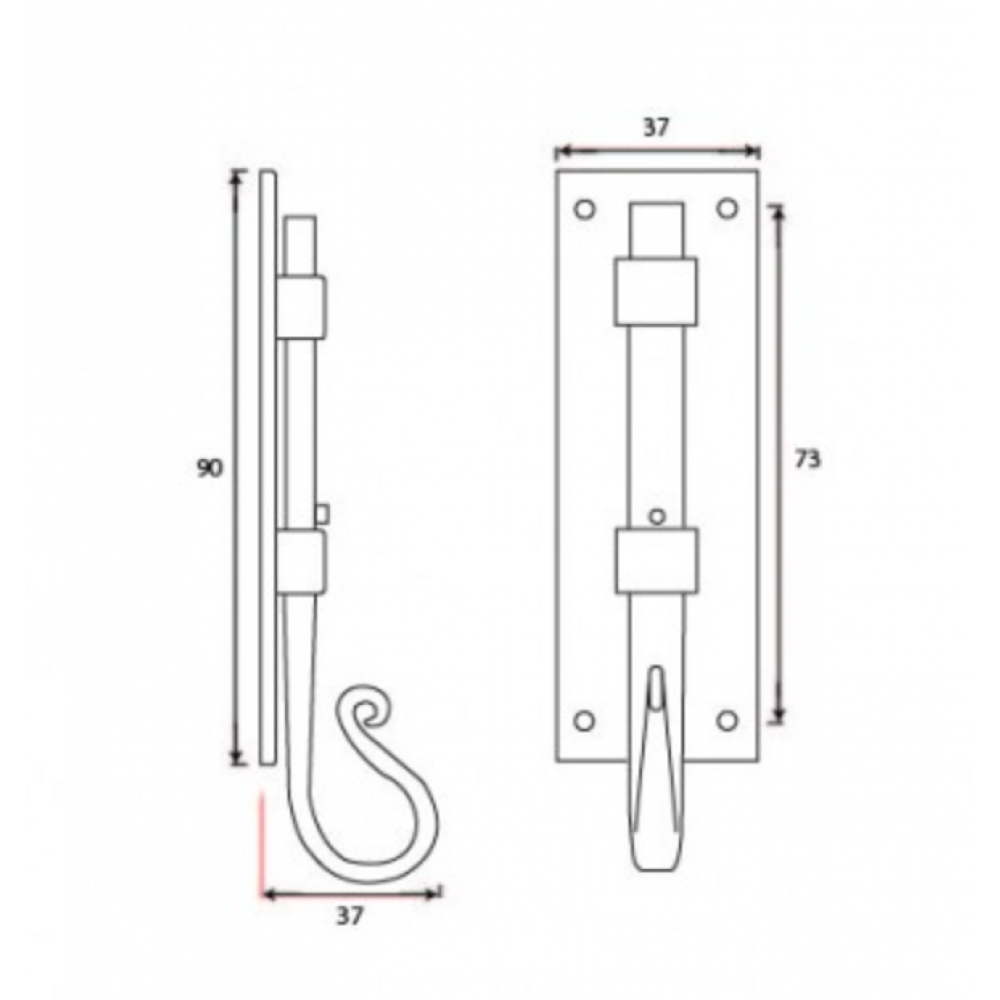

A schematic plan of the shepherd crook bolt with dimensions

£53.95

Size

4 inch

6 inch

In stock
Inventory on the way

Beautiful pewter door bolt with a shepherds crook handle. This versatile bolt comes with several keeps to allow it to be used on doors that are inward or outward opening along with windows. The pewter patina finish allows this product to be used internally and externally, and has a sprung mechanism so it can also be used horizontally or vertically.

4 inch:
Fixing plate: 91mm x 37mm x 3mm
Receiver plate: 33mm x 21mm x 2mm
Receiver bridge: 37mm x 19mm x 3mm
Receiver bridge height: 23mm
Angled keep: 37mm x 25mm x 1mm (Depth: 10mm)
Throw: 20mm

6 inch:
Fixing plate: 158mm x 52mm x 5mm
Receiver plate: 52mm x 25mm x 3mm
Receiver bridge: 52mm x 19mm x 5mm
Receiver bridge height: 23mm
Angled keep: 52mm x 25mm x 1mm (Depth: 10mm)
Throw: 28mm
Forged from steel with a pewter patina finish
Works horizontally & vertically due to the strong spring mechanism incorporated into the bolts
Suitable for internal or external use
Supplied with matching SS wood screws
